Home » Products » Double Beam UV-VIS Spectrophotometer » Microprocessor uv-vis scpectrophotometer Double Be

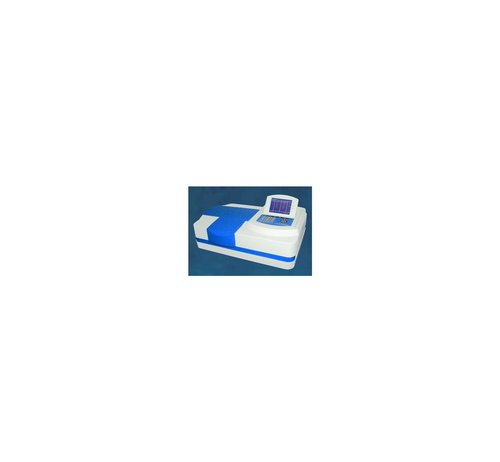

Microprocessor uv-vis scpectrophotometer Double Be

Microprocessor uv-vis scpectrophotometer Double Be
Microprocessor uv-vis scpectrophotometer Double Be
Product Code : JS-2900
Product Description

SPECTROPHOTOMETER successfully realizes high accuracy and reliability measurement to meet various application requirements. It can be used extensively for qualitative and quantitative analysis in such fields as biochemical research and industry, pharmaceutical analysis and production, education, environmental protection, food industry. clinical examination, sanitation and antiepidemic etc



Salient Features

  1. Wide wavelength range. satisfying requirements of various fields.

  2. Fully automated design, realizing the simplest measurement & satisfying the requirements of pharmacopoeia.

  3. Maximum of 9 Wavelengths & 7 Samples can be measured at one time.

  4. Automatic change -over between W lamp & 02 lamp

  5. Optimized optics and large scale integrated circuits design, light source and receiver from world famous measurement all add up to high performance and reliability.

  6. Rich measurement methods: wavelength scan, time scan, wavelenth determination, multi-order derivative determination, double-wavelength method and triple-wavelength method etc., meet different measurement requirement.

  7. Automatic 10mm 8-cell holder

  8. Data output can be obtained via a printer port and USB Connectivity.

  9. Parameters and data can be saved for users convenience.

  10. PC controlled measurement can be achieved for more accurate and flexible requirement.

































Technical Specifications

Wavelength Range : 190 -1100 nm

Spectral Bandwidth : 1 nm

Working Mode :T, A, C, E

Optical System : Double beam

Scanning Speed : Fast / Medium / Slow

Photometric Range : - 0.3 - 3.5 A, 0 to 220 %T

Wavelength Accuracy : ± 0.3 nm

Wavelength Reproducibility : < 0.10 nm

Photometric Accuracy : ± 0.3% T (0-100 %T),

± 0.002 A (0-0.1 A)

Photometric Reproducibility : < 0.15 %T

Stray Light : < 0.1% T (Nal. 220 nm, NaNO2 340nm)

Baseline Flatness : ± 0.002 A

Stability : < 0.001 A/h (at 500 nm,

after warming up)

Noise : ±0.001A (at 500 nm, after warming up)

Detector : Dual Silicon Photodiode

Display : 6 inches high light blue LCD

Power : AC: 220 V ±10%, 50 Hz

Dimensions : 630 x 470 x 210 mm

Weight : 26 kg

Accessories

Glass Cells :16 No.

Quartz Cells : 4 Nos.

Fuse : 3 Nos.

Instrument Cover : 1 No.

Software CD : 1 No.

RS 232 Cable : 1 No.

Operation Manual : 1 No
