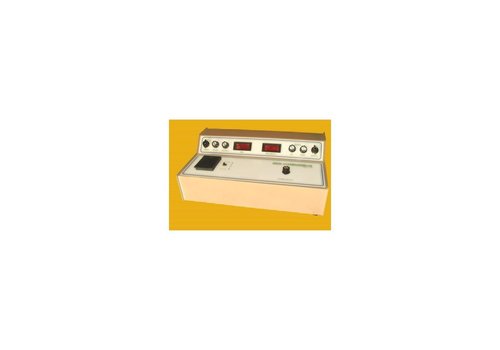

Digital Spectrophotometers

Digital Spectrophotometers
Digital Spectrophotometers
Product Code : JS-31
Product Description

We offer wide range of Digital Display Spectrophotometers. Range 340-960 nm with facility for automatic concentration, % transmission and absorbance measurements. 3½ digit data display, separate 3 digit LED display for wavelength in nm with 1nm wavelength resolution.

Technical Specifications:-

Model

LT-31

LT-38

Range

340 to 960 nm

340 to 960 nm

Resolution

0.1%T, 0.001 Abs

0.1%T, 0.001 Abs

Output

%T: 0 t0 100%, Abs; 0 to 1.999, Conc; 0 to 1999

%T: 0 t0 100%, Abs; 0 to 1.999, Conc; 0 to 1999

Detector

Silicon Photodiode

Silicon Photodiode

Light Source

6V, 1 Amp. Vertical Tungsten Halogen Lamp

6V, 1 Amp. Vertical Tungsten Halogen Lamp

Monochromater

600 Lines / mm grating

600 Lines / mm grating

Path Length

10 mm

10 mm  & 50 mm

Spectral Bandwidth

10 mm

10 mm

Wave Length Resolution

1 nm

1 nm

Wave Length Accuracy

1 nm

1 nm

Repeatability

+1  nm

+1 nm

Display

3 1/2 digit LED Double Display

3 1/2 digit LED Dual Display

Operating Temp.

5 to 45oC

5 to 45oC

Power

230V+ 10% AC 50 Hz

230V+ 10% AC 50 Hz

Dimensions

490 x 300 x 165 mm

490 x 300 x 165 mm

Weight

10 Kg (approx.)

10 kg (approx.)

Accessories

Square Cuvettes 2 Nos., Dust Cover, Operation Manual.

Salient features of our spectrophotometer:

Range 340 to 960 nm

Direct concentration facility

Latest solid state IC technology

Digital display

Highly stable and accurate

It operates at a wavelength range of 340 to 960 nm

Its output is available on 3 1/2 digit LED display in terms of optical density, percentage transmission and concentration
