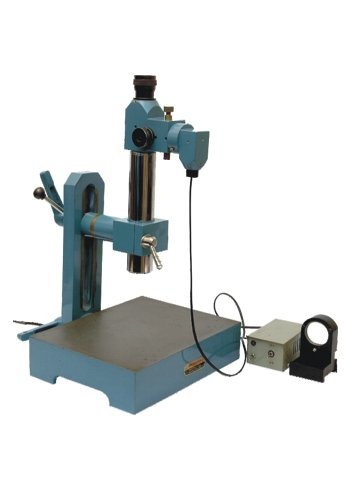

Angle Dekkoe

Angle Dekkoe
Angle Dekkoe
Product Code : 055
Brand Name : JSC
Product Description
Precision Angle Dekkor (Dual axes)
Specification:
Direct reading on knob    : 3″
(Least count of Angle Dekkor)
Maximum reading on graticule    : ±50′X & ±50′Y
Graduation on graticule   :1′ each division
Accuracy over 1′ range    : 6″
Accuracy over full range  : 30″
Measurement axis            : Dual
Range of measurement     : ±50′X & ±50′Y
Magnification                   : 16X
Field of view                    : 100′ Clear
aperture                   : 26 mm Max.
working distance     : 3.5 meters
Illumination                      : 2W, 6V
*   Reflecting Mirror with base
Specification:
  • Material: Optical glass BSC / BK-7
  • Front surface coated mirror. Coating material: Al. with protective coat of SiO
  • Dia. 50 mm; Thickness: 10 mm; Clear aperture: 45 mm
  • Front surface optically flat; Surface flatness: λ/4; other face: fine ground
  • Foot span of base: 65 mm; Width: 62 mm
  • Bottom and sides are optically ground.
  • Mirror is mounted on the base at 90° ±2′
